Features

  • Wide capacitance range, up to 2500 pF available on demand
  • Available with XtraVolt for high voltage application
  • Standardized six hole mounting flanges
  • Available as a motorized vacuum capacitor on demand
  • Intermediate size between Hexa-Con and Maxi-Con series
  • Ultra Life feature applicable

Applications

Technical Specifications

Capacitance Cmax range
200 - 2500 pF
Upt range 10 - 35 kV

max. current IRMS at 13.56 MHz

196 ARMS
Inductance ≤ 9 nH
Diameter 95 mm
Height 151 - 156 mm
Cooling systemConvection, Hybrid
RoHS conformYes

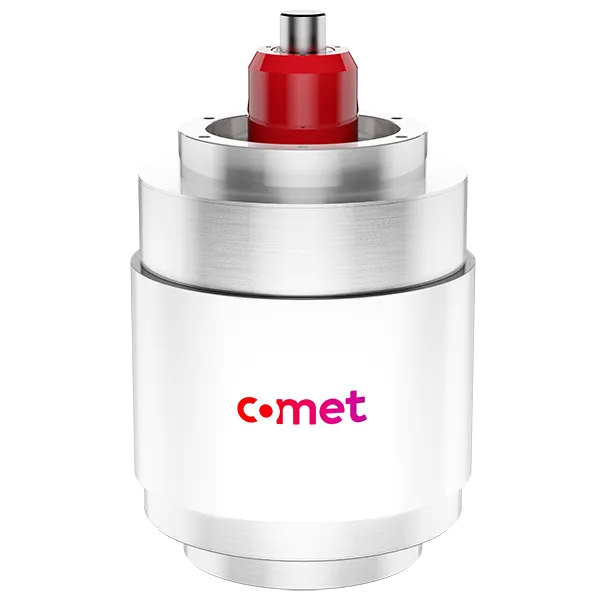

Tetra-Con product range
