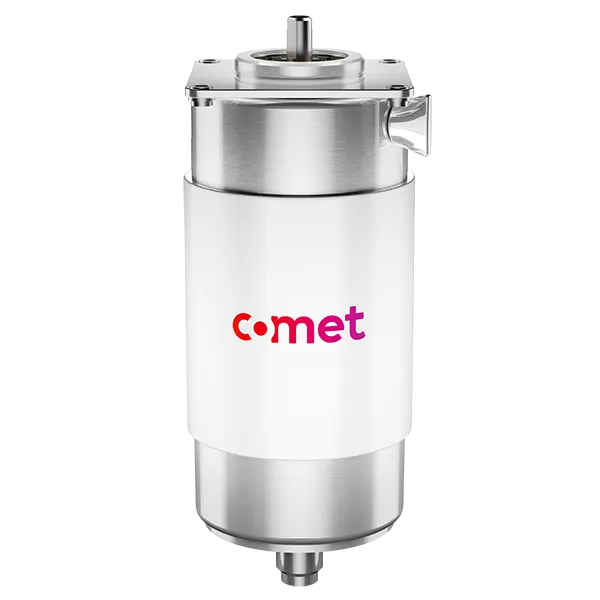

Features

  • Designed for high vibration and shock applications
  • Rugged double bearing construction
  • Compact design and reduced height
  • Wide tuning range up to 125:1 from Cmax to Cmin
  • Long lifetime due to optimized drive system
  • Standardized 42 mm quadratic mounting flange
  • Used in small matching units for semiconductor applications and aviation tuners

Applications

Technical Specifications

Capacitance Cmax range
125 - 1200 pF
Upt range 3 - 8 kV

max. current IRMS at 13.56 MHz

36 - 65 ARMS
Inductance ≤ 8 nH
Diameter 46 mm
Height 114 - 158 mm
Cooling systemConvection
RoHS conformAvailable
