Features

  • Designed for typical MW/SW broadcast applications
  • Widely used in transmitters from 100 kW to 1000 kW
  • High capacitance values available for demanding applications
  • Available with water cooling for higher current applications
  • Low inductance results in high self-resonant frequency
  • Ideal solution for high power applications

Applications

  • Broadcast
  • Industrial

Technical Specifications

Capacitance Cmax range
400 - 5000 pF
Upt range 10 - 70 kV

max. current IRMS at 13.56 MHz

227 - 464 ARMS
Diameter 183 mm
Height 88 - 195 mm
Cooling systemConvection, Water
RoHS conformYes

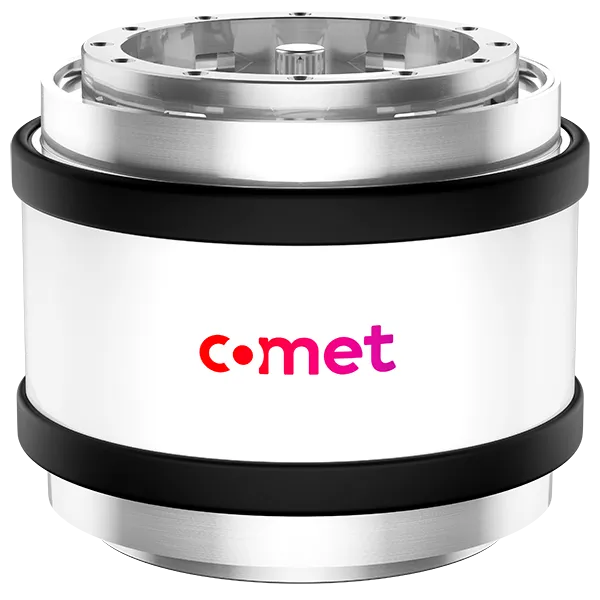

MAMi-Cap product range
