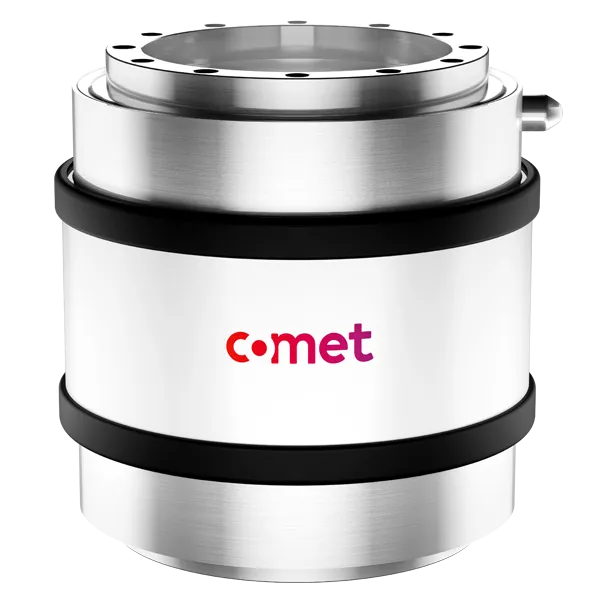

Features
- Designed for high power MW/SW broadcast applications
- Used in transmitters from 500 kW to 1000 kW
- High voltage relative to capacitance – low inductance results in high self-resonant frequency
Applications
- Broadcast
- Industrial
Technical Specifications
| Capacitance Cmax range | 2000 pF |
| Upt range | 45 - 55 kV |
max. current IRMS at 13.56 MHz | 283 ARMS |
| Diameter | 207 mm |
| Height | 183, 212 mm |
| Cooling system | Convection |
| RoHS conform | Available |
