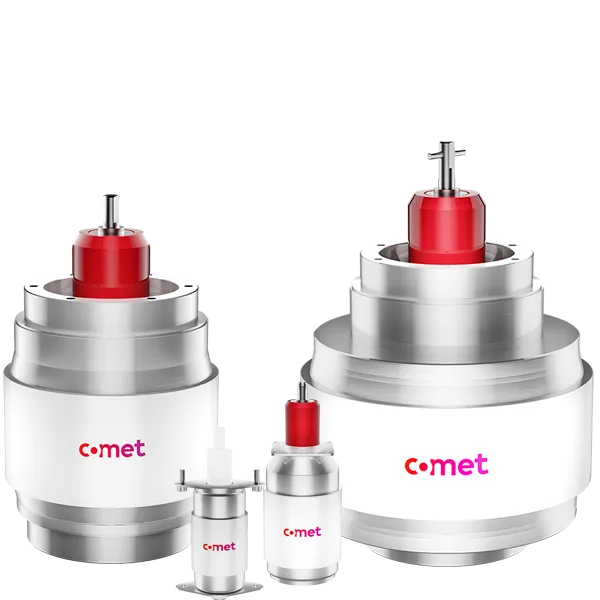

Variable Capacitors can be intentionally and repeatedly changed, both mechanically and electronically.
Series Overview
Variable Vacuum Capacitors
The graph below classifies all Comet Variable Vacuum Capacitors series according to two technical key features:
• peak test voltage (kV)
• covered capacitance range (pF)
The Comet Variable Vacuum Capacitors series are listed with increasing envelope. In consequence the
main usage is indicated with side bars.
The specified peak test voltage is intended for testing purposes only. During RF operation, lower working voltage limit Upw must be applied.
Examples | pF | kV |
| Li-Con | 30 - 125 | 8 - 20 |
| Basic-Con | 170 - 1400 | 4 - 15 |
| Maxi-Con | 250 - 3000 | 8 - 25 |
| Supra-Con | 350 - 2500 | 20 - 55 |
Didn't find the right solution?
Customized Vacuum Capacitors
Comet offers the broadest selection and ranges of capacitance, power voltage, and drive systems
