Features

  • Designed for applications over 20 kW
  • High voltage and high current capability
  • Typical frequency range between 2 MHz and 40 MHz
  • Available with water cooling
  • Standardized six hole mounting flanges
  • Available as a motorized and non-motorized vacuum capacitor
  • Ultra Life feature applicable

Applications

Technical Specifications

Capacitance Cmax range
250 - 3000 pF
Upt range 8 - 25 kV

max. current IRMS at 13.56 MHz

123 - 182 ARMS
Inductance ≤ 11 nH
Diameter 117 mm
Height 152 - 171 mm
Cooling systemConvection, Water, Hybrid
RoHS conformAvailable

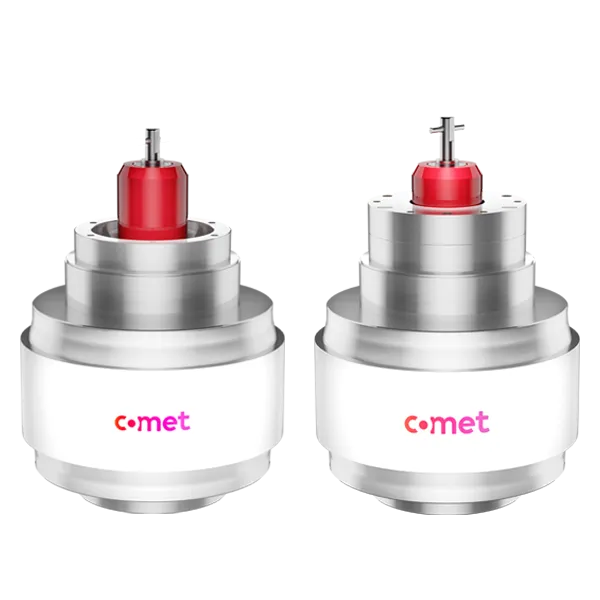

Maxi-Con product range
