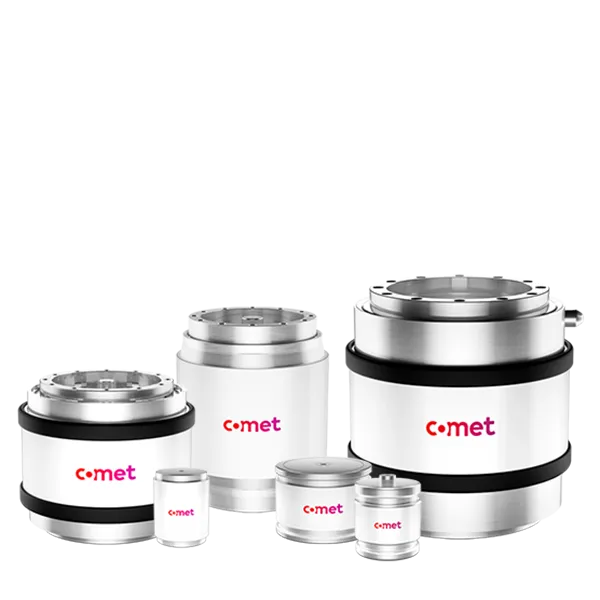

Fixed Capacitors can be used for a wide range of industrial & broadcast applications.
Series Overview
Fixed and Trimmer
Vacuum Capacitors
The graph below classifies all Comet Fixed Vacuum Capacitors series and Trimmer Capacitors according to two technical key features:
• peak test voltage (kV)
• covered capacitance range (pF)
The Comet Fixed Vacuum Capacitors and Trimmer Capacitors series are listed with increasing envelope. In consequence the main usage is indicated with side bars.
The specified peak test voltage is intended for testing purposes only. During RF operation, lower working voltage limit Upw must be applied.
Examples | pF | kV |
| Mini-Cap A-Geometry | 210 - 2000 | 3 - 15 |
| Mini-Cap D-Geometry | 20 - 225 | 25 - 30 |
| Trimmer C-Geometry | 12 - 120 | 15 |
| Trimmer E-Geometry | 12 - 440 | 25 - 40 |
Fixed Vacuum Capacitors Series
